B5020 Vertical Slotting Machine 200mm Max Slotting Length

Brand Name : Baishun

Model Number : B5020

Certification : ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T,L/C,Western Union

Supply Ability : 100Set/Sets per Month

Delivery Time : 20 working days

Packaging Details : Export standard wooden case package

Name : B5020 Vertical Slotting Machine

Model : B5020

Max.slotting length : 200mm

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Controller : PLC

Voltage : 380v/50hz or as customer required

Warranty : 1 Year

Power (kW) : 4

Key words : Vertical Slotting Machine

Contact Now

China Metal Slotting Machine Vertical Type Keyway Slotting Machine B5020 Vertical Slotting Machine:

The main performance characteristics:
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),
therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
mechanical slotting machine used drum wheel feed.

Application:
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold
and other within the scope of etc. work matter.
2. Enterprise suitable for single or small batch production.

Product main technical parameters:
Specification Unit B5020 B5032 B5040
Max. stroke of RAM mm 220 340 400
Ram maximum slotting length mm 200 320 500
Ram motion frequency times/min 32.50.80.125 20.32.50.80 20.32.50.80
Ram tilt angle ° 0-8 0-8 0-8
Ram vertical adjustment distance mm 230 315 315
Cutter head bearing surface to the distance between the forearm bed mm 485 600 600
Table Diameter mm 500 630 630

The distance between the lower end of the sliding frame to work table

 mm 320 490 600
Max. longitudinal moving distance of working table mm 500 630 690
Max. transverse moving distance of working table mm 500 560 620
Table maximum rotation angle ° 360 360 560
Vertical and horizontal table power feed range mm 0.08-1.21 0.08-1.21 0.08-1.21
Table rotary feed range mm 0.052-0.783 0.052-0.783 0.052-0.783
Motor power kw 3 4 4
Motor speed r/min 1430 960 960
Machine weight kg 2200 3000 3700
Outline dimension mm 1916*1305*1995 2261*1495*2245 2290*1525*2485


Item

Unit

BK5018

BK5030

BK5032

BK5040

Max. length of ram

mm

180

300

320

400

Ram adjustment stroke

 mm

80

300

315

315

Number of ram movements

n/min

30/120

30~150

20~80

20~80

Working desk size

mm

600*320

550*405

800*610

800*610

X direction motor torque

N.M

6

6

7.7

7.7

Z direction motor torque

N.M

6

6

7.7

7.7

Main motor power

kw

3.7

3.7

4

4

Machine weight

kg

2000

2800

3700

3700

Package dimension

mm

2200*2100*2300

2300*2200*2300

2800*2400*2500

2800*2400*2500

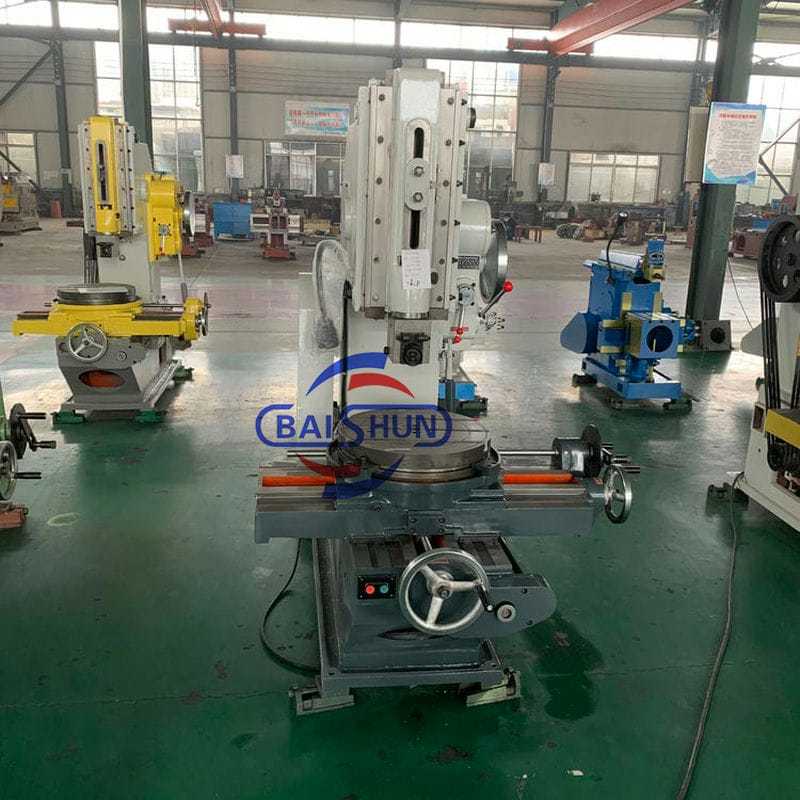

Machine picture:
